ULD Specifications

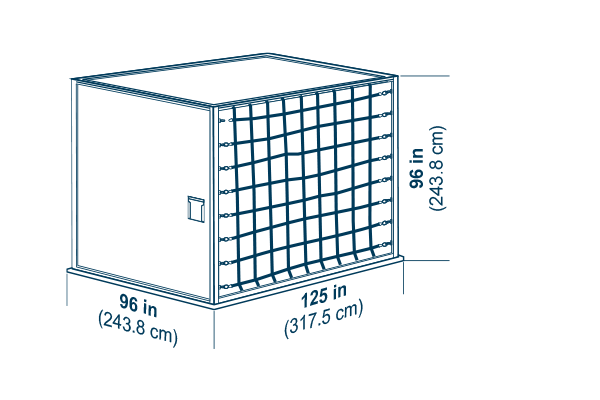

IATA ULD code: AMA rectangular container on P6P base

Main-deck container. Door is canvas with built-in net door straps.

Maximum gross weight: 6,804 kg (15,000 lb) Tare weight: 350 kg (772 lb),

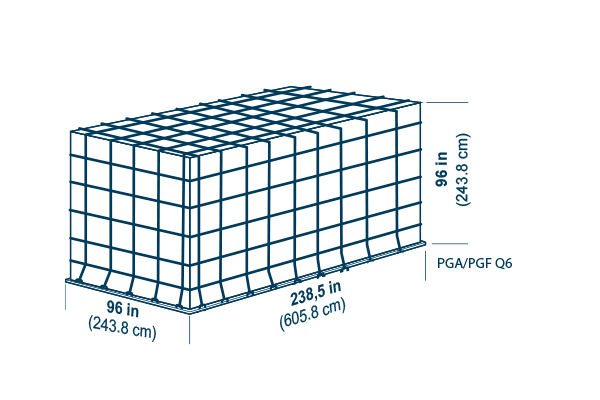

IATA ULD code: PGA/PGF Q6

Universal general-purpose flat pallet for lower holds and main decks.

IATA ULD code: PGA/PGF Q7

Universal general-purpose flat pallet for lower holds and main decks.

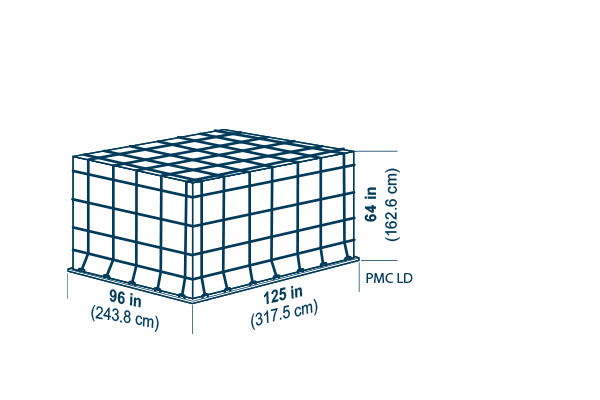

IATA ULD code: PMC LD

Universal general-purpose flat pallet for lower holds and main decks.

Tare weight: 120 kg (265 lb), Volume: H 162.6 cm (64 in), 11.5 m3 (407 ft3)

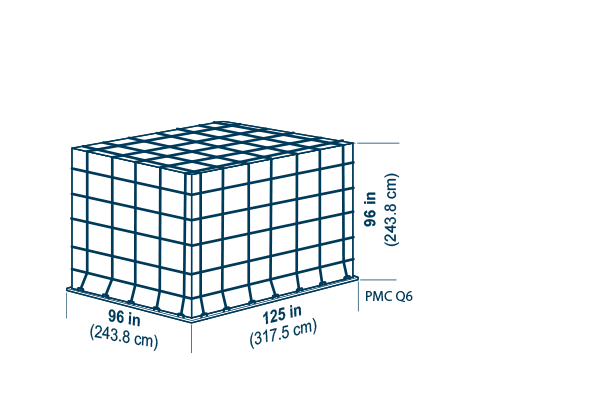

IATA ULD code: PMC Q6

Universal general-purpose flat pallet for lower holds and main decks.

Tare weight: 120 kg (265 lb), Volume: H 243.8 cm (96 in), 17.0 m3 (600 ft3)

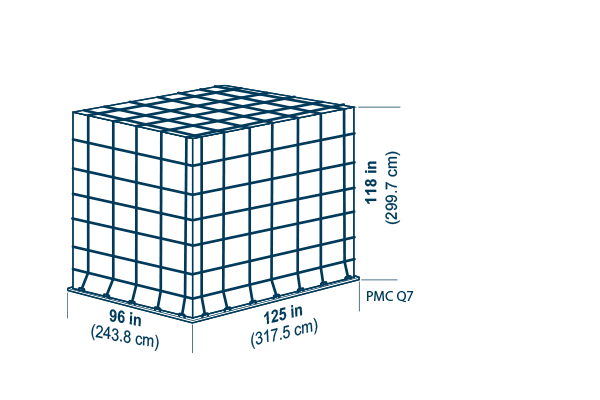

IATA ULD code: PMC Q7

Universal general-purpose flat pallet for lower holds and main decks.

Tare weight: 120 kg (265 lb), Volume: H 299.7 cm (118 in), 21.2 m3 (750 ft3)

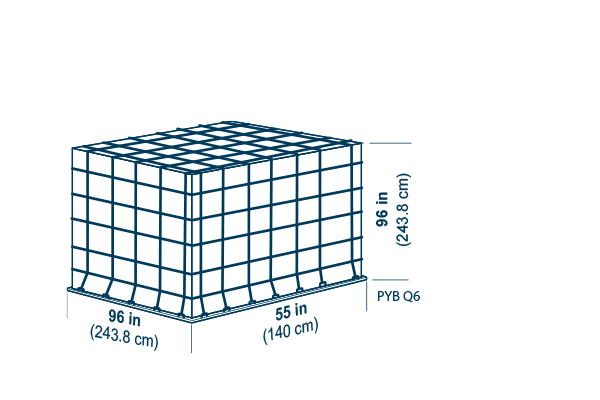

IATA ULD code: PYB Q6

Universal general-purpose flat pallet for lower holds and main decks.

IATA ULD code: PYB Q7

Universal general-purpose flat pallet for lower holds and main decks.

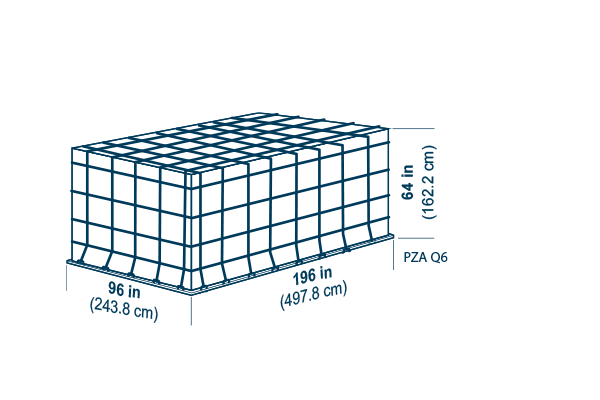

IATA ULD code: PZA Q6

Universal general-purpose flat pallet for lower holds and main decks.

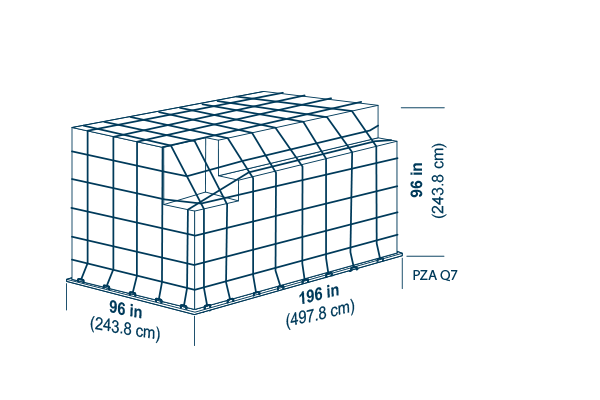

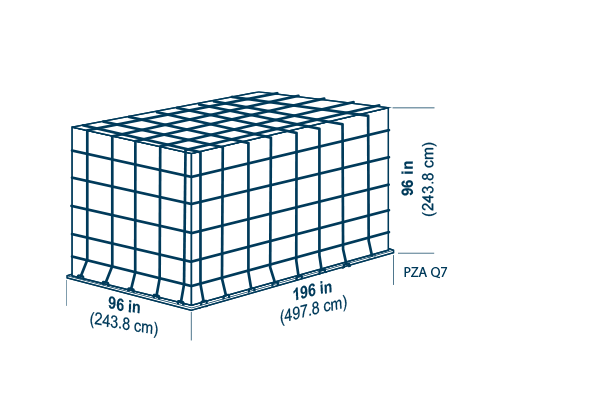

IATA ULD code: PZA Q7

Universal general-purpose flat pallet for lower holds and main decks.

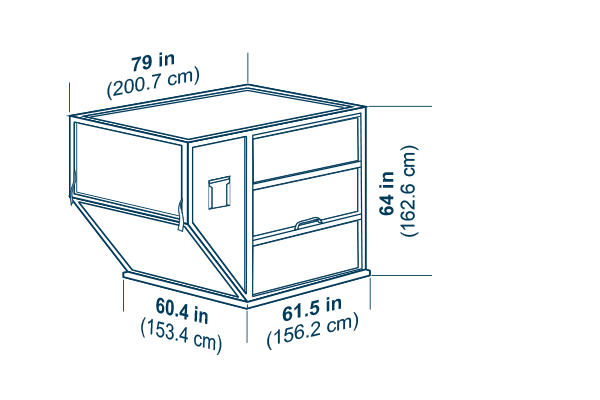

IATA ULD code: AKE contoured container

Half-width lower hold container with one angled side. Door is either canvas or solid.

Door opening: 58 x 61-in (147 x 155-cm), Maximum gross weight: 1,588 kg (3,500 lb), Tare weight: 82 kg (181 lb), AS1825 volume: 4.5 m3 (159 ft3)

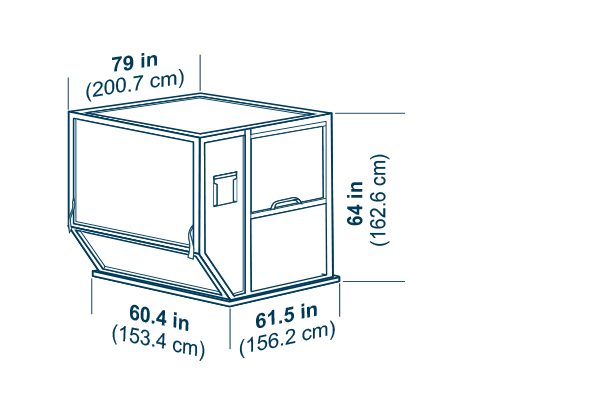

IATA ULD code: RKN contoured cool container

Half-width lower hold insulated container with one angled end. Door is solid. Most examples are forkable.

Door opening: 54 x 55-in (137 x 140-cm), Maximum gross weight: 1,588 kg (3,500 lb), Tare weight: 210 kg (463 lb)

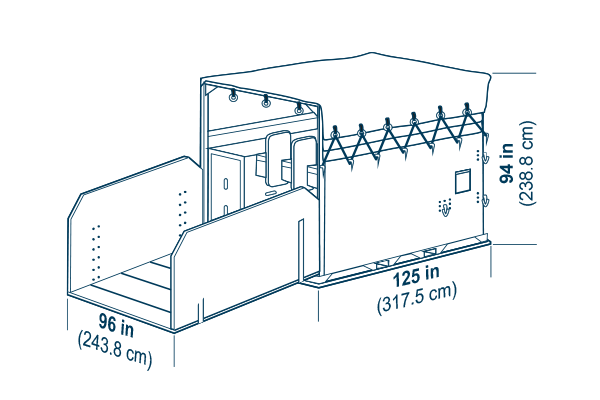

IATA ULD code: HMA horse box on P6P pallet base

P6P base with IATA-specified horse box stalls attached. Available with canvas top or solid roof. Some further modified versions available with position for escort.

Maximum gross weight: 3,500 kg (7,716 lb), Tare weight: 1,310 kg (2,888 lb)
